• 12V pwr outlet
• 4-spoke steering wheel
• AM/FM stereo w/cassette-inc: CD changer control, (4) speakers
• Air conditioning
• Black vinyl floor covering
• Day/night rearview mirror
• HD vinyl 40/20/40 split bench seat w/rear folding bench seat
• Passenger assist handle
• Rear underseat compartment storage
• Tilt steering column

• 11.5" rear axle ring gear diameter
• 11500# GVWR
• 136-amp alternator
• 17" x 6.0" argent steel wheels
• 3.73 axle ratio
• 35 gallon fuel tank
• 600-amp battery
• 8.0' pickup box
• 9.25" front axle ring gear diameter
• Dual rear wheels
• Four wheel drive
• Front stabilizer bar
• Full size spare tire w/17" steel wheel, winch type carrier
• HD front/rear shock absorbers
• LT235/80R17 all-season BSW tires
• Pwr 4-wheel anti-lock disc brakes
• Pwr steering

• Driver/front passenger "Next Generation" airbags
• Dual note horn
• Front shoulder belt height adjusters
• Pwr 4-wheel anti-lock disc brakes

5.9L (360) HO I6 CUMMINS TURBO DIESEL ENGINE

• 750-amp battery

• 4WD
• Power Outlet

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 28.4
• Total Cooling System Capacity (qts): 18
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 3678
• Curb Weight - Rear (lbs): 3099
• Gross Vehicle Weight Rating Cap (lbs): 12200
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6500
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Size: LT235/80R17
• Rear Tire Size: LT235/80R17
• Spare Tire Size: LT235/80R17
• Front Tire Capacity (lbs): 2835
• Rear Tire Capacity (lbs): 2835
• Spare Tire Capacity (lbs): 2835
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 6.0
• Rear Wheel Size (in): 17 x 6.0
• Spare Wheel Size (in): 17 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 53.0
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 160.5
• Length, Overall w/o rear bumper (in): 249.7
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 79.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 49.9
• Front Bumper to Back of Cab (in): 143.0
• Cab to Axle (in): 56.9
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): 47.3
• Frame Width, Rear (in): 36.3
• Ground Clearance, Front (in): 9.9
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.9
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 63.5
• Cargo Volume (ft³): 73.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 64.8
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.7
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 64.8
• Summary

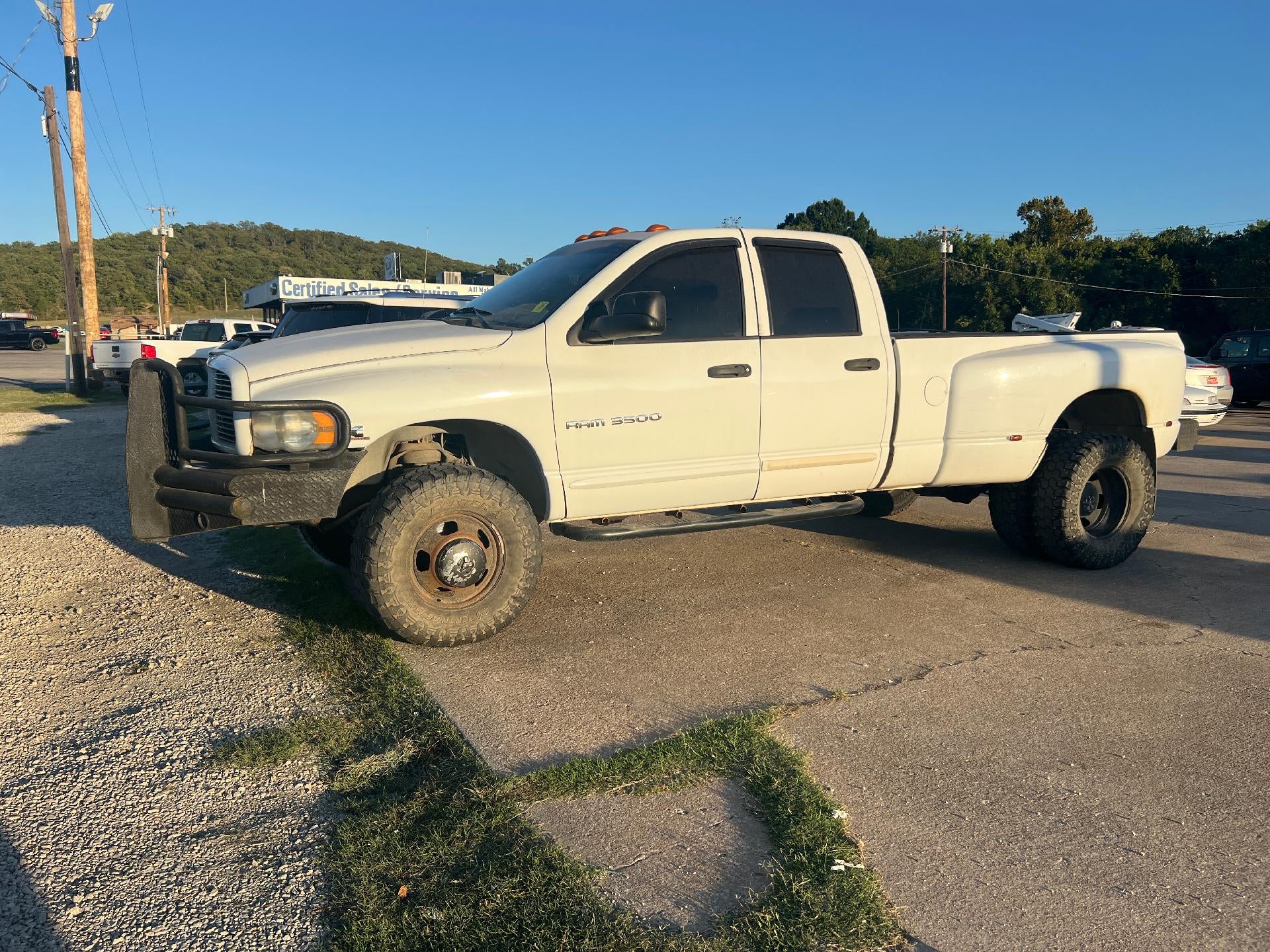

• Vehicle Name: Dodge Ram 3500
• Body Style: Quad Cab 8' Box
• Body Code: 160.5" WB
