• Body, liftgate with fixed glass
• Bumpers, front and rear, body-color with Charcoal lowers
• Daytime Running Lamps
• Headlamps, halogen composite with automatic exterior lamp control
• LS Exterior Appearance, includes body-color bumpers with Charcoal lowers, Charcoal luggage rails, Black door handles and 16" cast aluminum wheels
• Luggage rack side rails, roof-mounted, Black
• Mirrors, outside power-adjustable, Black, manual folding
• Moldings, Charcoal lower rocker
• Moldings, body-color bodyside
• Spoiler, rear, integrated, body-color
• Tires, P235/65R16 all-season, blackwall
• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) cast aluminum includes steel spare
• Wiper, rear intermittent with washer
• Wipers, front intermittent

• Air conditioning, single-zone manual
• Armrest, front center console with concealed storage
• Console, center with armrest and concealed storage
• Console, floor with storage bin
• Cruise control, electronic with set and resume speed
• Cup holders, 3 front and 2 rear
• Defogger, rear-window electric
• Door locks, power programmable, includes remote keyless entry
• Driver Information Center, monitors various systems
• LS Interior Trim Package, with Manhattan Cloth
• Lighting, interior with theatre dimming, center-mounted dome and rear cargo area
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary with covers, 12-volt, includes 1 front and 1 rear
• Remote Keyless Entry, with 2 transmitters, panic button, content theft alarm, activation verification and illuminated entry
• Seat, front passenger flat-folding seatback
• Seats, front reclining buckets
• Seats, rear Multi-Flex 60/40 split-seatback bench with 2-position recline
• Steering column, tilt
• Steering wheel, urethane
• Theft-deterrent system, content theft alarm
• Tire Pressure Monitor
• Visors, driver and front passenger vanity mirrors
• Warning tones, headlamp on and key-in-ignition
• Windows, power with driver Express-Down and passenger lockout

• Battery, maintenance-free with rundown protection
• Front wheel drive
• GVWR, 5070 lbs. (2300 kg)
• Rear axle, 2.48 final drive ratio
• Steering, power-assist, electric-variable
• Suspension, front independent, strut type with coil springs
• Suspension, rear independent trailing arm with 3 lateral locating links and coil springs
• Suspension, ride-handling suspension tuning

• Air bags, dual-stage frontal, driver and front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Door locks, rear child security
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn & Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. Not available with a ship-to of Puerto Rico or the Virgin Islands.)
• Safety belts, 3-point, driver and right-front passenger, height-adjustable includes pretensioners
• Safety belts, 3-point, rear, all seating positions
• StabiliTrak, electronic stability control system
• Traction control

ENGINE, 3.4L V6

• (185 HP [138.0 kW] @ 5200 rpm
• 210 lb.-ft of torque [283.8 N-m] @ 3800 rpm) (STD)

• Stability Control
• Cloth Seats
• MP3 Player
• Auxiliary Audio Input
• Cruise Control
• Adjustable Steering Wheel
• Keyless Entry
• Power Outlet

• Vehicle
• EPA Classification: 2WD Sport Utility Vehicle
• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 10.6
• Weight Information
• Base Curb Weight (lbs): 3660
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 525
• Suspension
• Suspension Type - Front: Strut-type
• Suspension Type - Rear: Trailing arm
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.65 x 1.02
• Rear Brake Rotor Diam x Thickness (in): 11.93 x 0.79
• Tires
• Front Tire Order Code: QKG
• Rear Tire Order Code: QKG
• Front Tire Size: P235/65R16
• Rear Tire Size: P235/65R16
• Spare Tire Size: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable power assist
• Steering Ratio (:1), Overall: 19.4
• Lock to Lock Turns (Steering): 3.8
• Turning Diameter - Curb to Curb (ft): 41.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.5
• Exterior Dimensions
• Wheelbase (in): 112.5
• Length, Overall (in): 188.8
• Width, Max w/o mirrors (in): 71.4
• Height, Overall (in): 69.3
• Track Width, Front (in): 61.6
• Track Width, Rear (in): 61.8
• Min Ground Clearance (in): 7.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): 28.6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 67.1
• Cargo Volume to Seat 2 (ft³): 35.7
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 106.4
• Front Head Room (in): 40.9
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 55.7
• Front Hip Room (in): 51.1
• Second Head Room (in): 40.1
• Second Leg Room (in): 40.2
• Second Shoulder Room (in): 55.9
• Second Hip Room (in): 51.3
• Summary

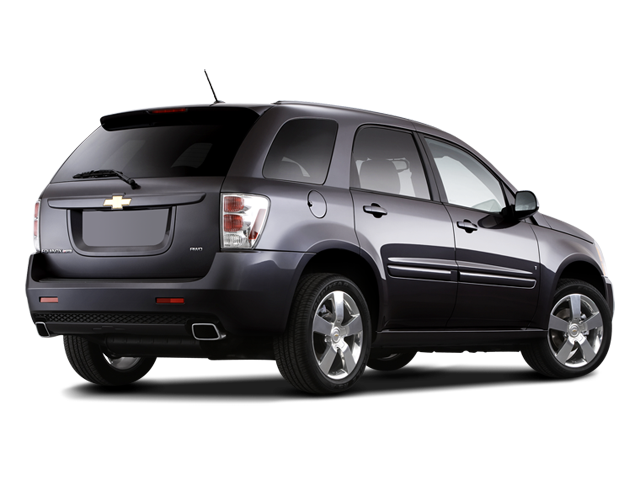

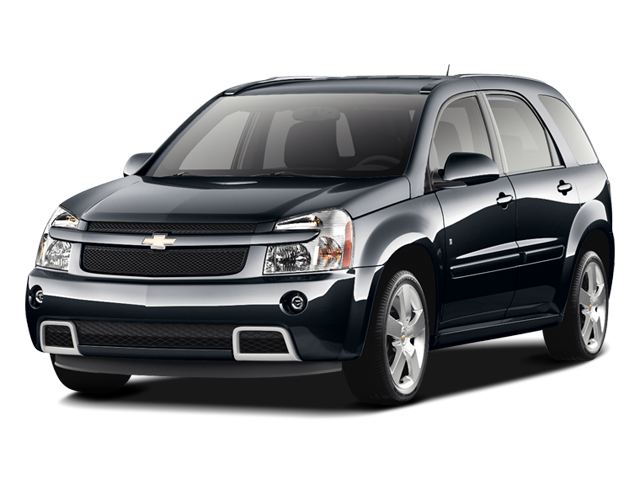

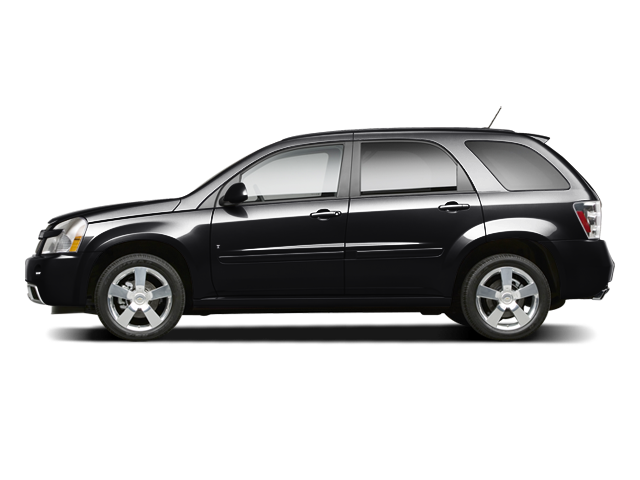

• Vehicle Name: Chevrolet Equinox
• Body Style: 4 Door
